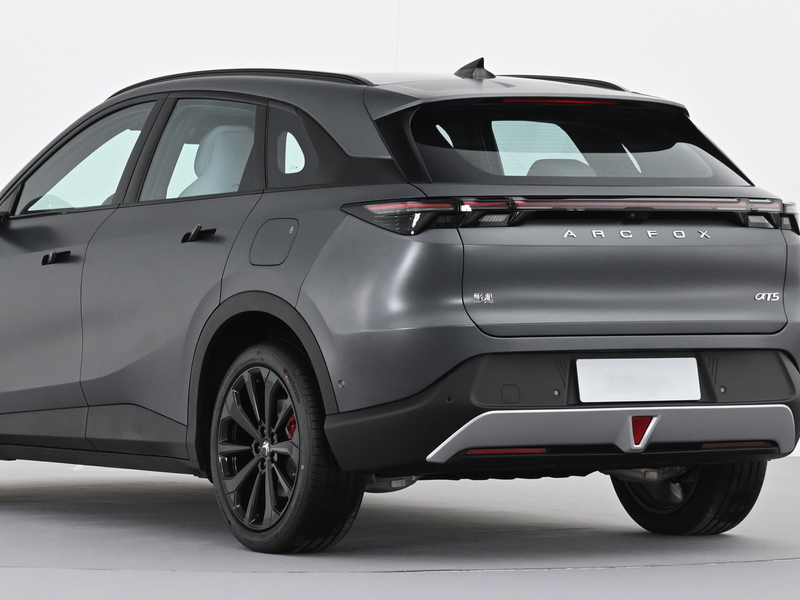

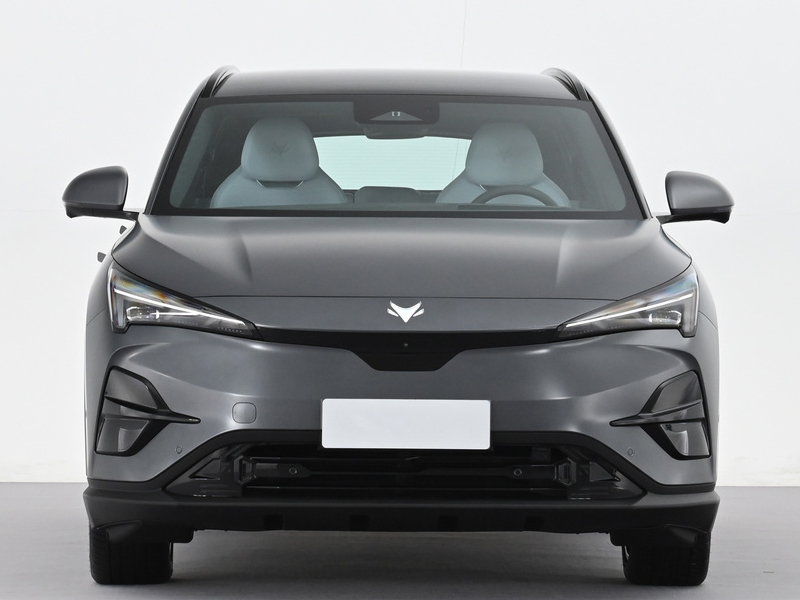

ARCFOX αT5 2024 660 MAX
The αT5 has a high fidelity range of 660KM and is a model in the same class equipped with 800V high-voltage supercharging, capable of charging 260km in 10 minutes. At the same time, a winter pre charging system has been developed, which can be booked through the APP or heated on the go using the car's navigation system.
Learn more about ARCFOX αT5 2024 660 MAX
Submit

Model features


The intelligent terminal function carried by Alpha T5 is a car model of the same level that can interact with vehicles through mobile phones while driving. You can adjust the status of the car's music, video, air conditioning, ambient lighting, etc. through the mobile interface.

The intelligent parking system has a 300W high-definition pixel panoramic camera and a high-precision ultrasonic radar with a distance resolution of less than 1 centimeter. The parking experience supports "visible parking" and "one-step parking", with a standard parking time of less than 25 seconds.

The body torsional stiffness of the Alpha T5 is as high as 47119 Nm/deg, with high-strength steel and aluminum alloy bodies accounting for up to 81%. Achieved 30.08% in the proportion of hot formed steel




LevelMid size SUV
Energy typePure electric
Time to market2023.12
CLTC pure electric range (km)660
Battery fast charging time (hours)0.28
Maximum power (kW)200
Maximum torque (N · m)360
Body structure5-door 5-seater SUV
L * W * H (mm)4690*1936*1650
Official 0-100km/h acceleration (s)7.5
Maximum speed (km/h)180
Vehicle warranty5 years or 120000 kilometers


Length (mm)4690
Width (mm)1936
Height (mm)1650
Wheelbase (mm)2845
Front wheelbase (mm)1640
Rear wheelbase (mm)1640
Approach angle (°)17
Departure angle (°)23
Body structureSUV
Door opening methodside hung door
Number of car doors5
Seating capacity5
Rear trunk volume (L)400
Curb weight (kg)1975
Maximum Full Load Mass (kg)2425


Motor typePermanent magnet/synchronous
Total power of electric motor (kW)200
Total torque of electric motor (N · m)360
Maximum power of front motor (kW)200
Maximum torque of front motor (N · m)360
Number of driving motorssingle motor
Motor layoutFront
TypeTernary lithium battery
Battery cooling methodLiquid cooling
CLTC pure electric range (km)660
Battery energy (kWh)79.2
Battery pack warrantyThe first car owner has no limit on age/mileage (the exemption clause is subject to official regulations)
